Mini pumps
3 different capacity pumps are available
| Model | PH19 | PH30 | PH35 |
| Capacity | 4GPM | 15GPM | 23GPM |
| Tri Clamp | 1" | 1.5" | 2" |
| Max pressure | 60psi | 60psi | 60psi |
| Motor* | 1/3 HP | 3/4 HP | 2 HP |
| Standard temperature 90C/195F - Special high temp stator available up to 140C/280F | |||
| *Higher power motors available for high viscosity fluids 240V/208V/480V or 120V option with variable speed drive | |||
| Variable speed drive can be used to increase capacity | |||

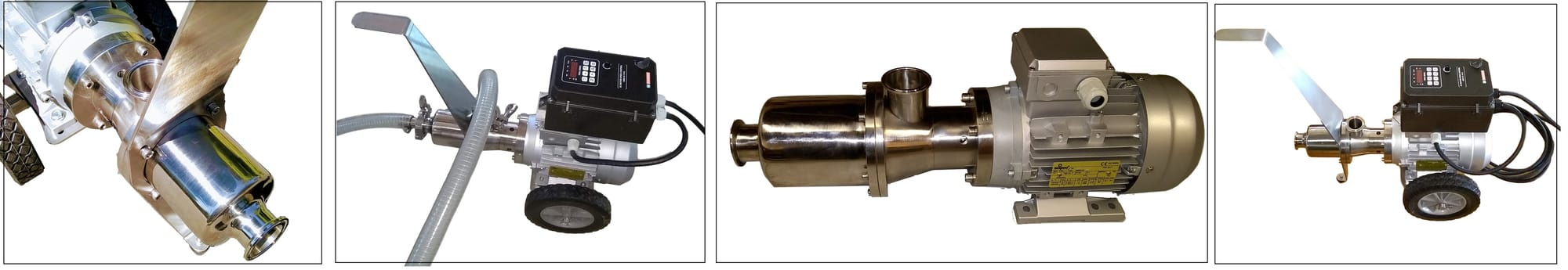

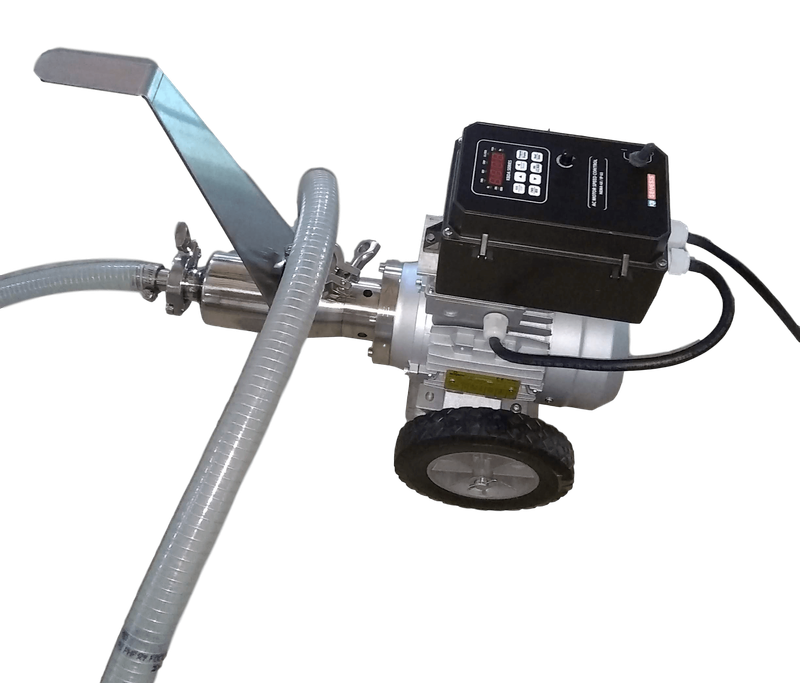

These mini pumps can be purchased as bare motorpump units or on a cart, or the PH19 and PH30 can be supplied with a carry handle and rubber feet and can be run from 120V outlet. PH35 can not be run from 120V. Great for low speed filtering with the optional electric cooling fan. Click the Gallery tab on main menu for more pictures and click pricing tab for prices.
• Oil sector: olive oil, vegetable oils, spreads, hummus etc.
• Wine sector: wine, wine with some skins and pulp (not full must)
• Milk and dairy sector: milk, cream, whey cheese, ricotta cheese
• Confectionery sector: jams, chocolate pastes, butter, glucose, honey
• Agricultural sector: flour dough, sewage, chemicals
• Chemicals: dyes, solvents, paint
• Cosmetic Industry: soap, shampoo, detergent
• Fishing industry: waste and offal, fish meal
